F11-SMM

F11-STC

F11-Series
part No.	Type	Flow rate	Max. Backwash

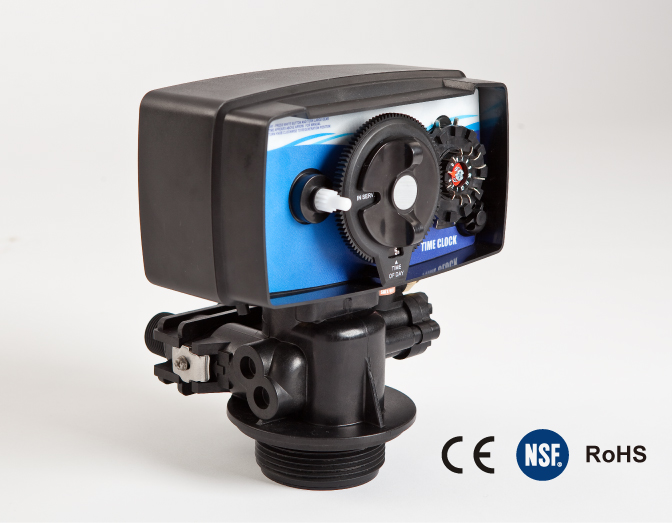

F11-STC	Softener timer	≤20 GPM	7 GPM
F11-ITC	Iron Filter timer	≤4 GPM	7 GPM
F11-FTC	Filter timer	≤4 GPM（for sand filter）	7 GPM
		≤5.7 GPM(for carbon filter)

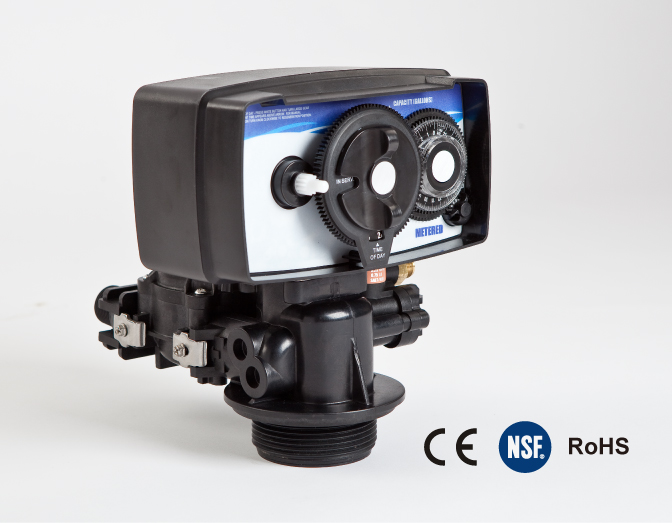

F11-SMM	Softener meter delayed	≤20 GPM	7 GPM
Inlet/Outlet fittings	3/4" or 1" NPTF
regeneration	Down flow /Up flow
Max. AV	3 W
Supply frequency	50 Hz or 60 Hz
Supply voltage	AC 230 V or 120 V or 24 V
Pressure	Working： 20-120 PSI
Temperature	34-110 F / 1-43 C
Peak flow rate @25 PSI drop	26 GPM/5.8T
Distributor pilot	1.05"OD pipe
Height from top of tank	7.8"/ 198mm
Mounting base	2-1/2"-24 UNEF
Brine line	9/16-24UNEF
Drain line	1/2"NPTF
