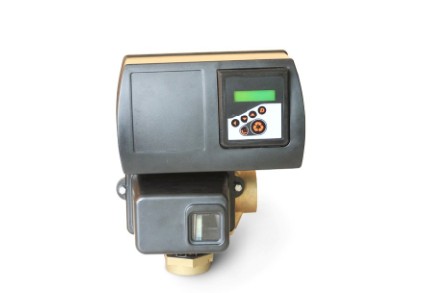

F31-Series
F31-STC	F31 Softener Timer
F31-SMM	F31 Softener Meter
F31-FTC	F31 Filter Timer
F31-FMM	F31 Filter MeterF31-STC

Inlet/Outlet	2″NPT
Base	4″ 8 UN
Distributor Pilot	1.96″ OD
Drain Line	3/4″ NPT
Brine Line	1/2″ OD
Height from top of tank	11.5″/290mm
Weight (single valve gross)	Timer 16KG/Meter 19KG
Electrical rating	220V、110V、24V - 50Hz、60Hz
Max. VA	74VA
Pressure	Hydrostatic: 300PSI/20bar
	Working: 20-120PSI/1.4-8bar
Temperature	1-43℃ / 34-110°F
