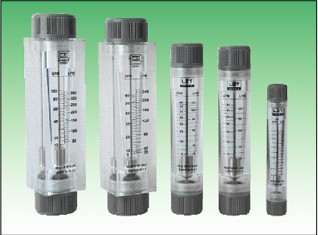

LZT seral flow meter, which is made of Acrylic, is used to measure the single-phase non-pulsating flus of liquid or gas.
|
Panle Type Flow Meter |
|
Serial No. |
Item no. |
Dimensions (mm) |
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
LZT1M |
1GPM |
176 |
32 |
35 |
168 |
27 |
127 |
76 |
ZG 1/2" |
ZG 1/4" |
|
LZT2M |
2GPM |
176 |
32 |
35 |
168 |
27 |
127 |
76 |
ZG 1/2" |
ZG 1/4" |
|
LZT5M |
5GPM |
176 |
32 |
35 |
168 |
27 |
127 |
76 |
ZG 1/2" |
ZG 1/4" |
|
LZT10M |
10GPM |
236 |
45 |
46 |
228 |
33.5 |
165 |
101.6 |
ZG 1" |
Φ23 |
|
LZT20M |
20GPM |
236 |
45 |
46 |
228 |
33.5 |
165 |
101.6 |
ZG 1" |
Φ23 |
|
LZT35M |
35GPM |
236 |
50 |
50 |
228 |
33.5 |
165 |
101.6 |
ZG 1" |
Φ23 |
|
LZT40M |
40GPM |
236 |
50 |
50 |
228 |
33.5 |
165 |
101.6 |
ZG 1" |
Φ23 |
|
LZT50M |
50GPM |
236 |
50 |
50 |
228 |
33.5 |
165 |
101.6 |
ZG 1" |
Φ23 |
|
Tube Type Flow Meter |
|
Serial No. |
Item no. |
Dimensions (mm) |
|
A |
B |
C |
D |
|
LZT1G |
1GPM |
210 |
30 |
30 |
3/4" |
|
LZT2G |
2GPM |
210 |
30 |
30 |
3/4" |
|
LZT5G |
5GPM |
210 |
30 |
30 |
3/4" |
|
LZT10G |
10GPM |
280 |
43 |
43 |
1“ |
|
LZT16G |
16GPM |
280 |
43 |
43 |
1“ |
|
LZT20G |
20GPM |
280 |
43 |
43 |
1“ |
|
LZT35G |
35GPM |
265 |
49 |
49 |
1“ |
|
LZT40G |
40GPM |
265 |
49 |
49 |
1“ |
|
LZT60G |
60GPM |
302 |
66 |
64 |
1 1/2" |
|
LZT100G |
100GPM |
302 |
66 |
64 |
1 1/2" |
|
LZT150G |
150GPM |
302 |
66 |
64 |
2" | | |
