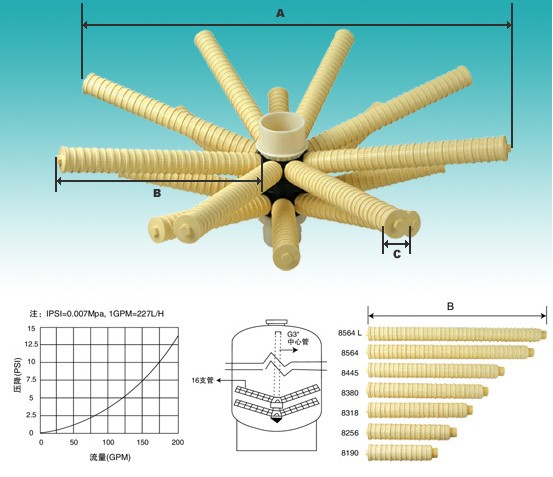

High Flow Top Mount 16 Laterals, 3" Riser Tube
|
High Flow Top Mount 16 Laterals, 3" Riser Tube |
|
Serial No. |
Item no. |
Dimensions (mm) |
Diameter (inches/mm) |
Top Opening |
|
A |
B |
C |
|
Jz408 |
JD8190-2S |
512 |
190 |
53 |
24" (Φ600mm) |
6"FLG |
|
Jz409 |
JD8256-2S |
630 |
256 |
53 |
30" (Φ750mm) |
6"FLG |
|
Jz410 |
JD8318-2S |
750 |
318 |
53 |
36"(Φ900mm) |
6"FLG |
|
Jz411 |
JD8380-2S |
870 |
380 |
53 |
40" (Φ1000mm) |
6"FLG |
|
Jz412 |
JD8445-2S |
980 |
445 |
53 |
48" (Φ1200mm) |
6"FLG |
|
Jz413 |
JD8564-2S |
1218 |
564 |
53 |
56"～65" (Φ1400 ～Φ1600mm) |
6"FLG |
|
Jz414 |
JD8564-2SL |
1345 |
640 |
53 |
65" ～80"(Φ1600 ～Φ2000mm) |
6"FLG |
|
